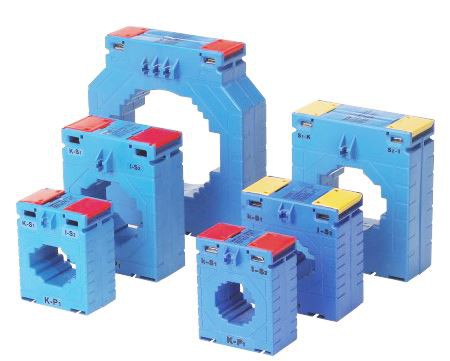

Split core current transformers MES series (Current Sense Transformer):

The MES series current transformers have beautiful outline and are convenient for mounting in many ways. Most of current transforms need the special mounting and the MES series used the mounting of DIN typing consuming a lot of time. The protective cover for the terminal blocks uses the switching device that is safe and agile.

MES guide rail type CT :

Primary current: 5A-3000A

Secondary current: 5A, 1A

Standard approval: VDE0414, BS7626, IEC44-1

Maximum voltage: 0.72/3KV

Frequency: 50-60Hz

Rated load: 2.5VA, 5VA, 10VA, 15VA

Class: 0.5, 1.0

Short-time thermal current: Ith=60×Ih

Rated security coefficient: FS<5

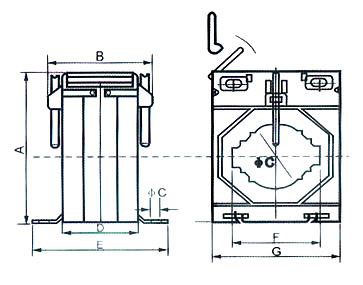

Dimension of case [mm]: 　

Model	A	B	C	D	E	F	G
MES-62/30	81	47	30	35	71	31	62
MES-62/40	81	47	30	35	71	41	62
MES-30	88	52	30	41	77	31	80
MES-40	88	52	30	41	77	41	80
MES-60	117	57	50	184	77	61	101
MES-100	115	53	86	38	74	101	145

Technical date & Sepecification of Current Sense Transformer:

Type	Rated current (A)	Rated power (VA)
		Class:0.5	Class:1
MES-62/30	30/5 40/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - - 1.5 2 2.5	1 1 1 1.5 1.5 2.5 3 5
MES-62/40	60/5 75/5 100/5 150/5 200/5 250/5 300/5	- - 1 1.5 2.5 3 5	1 1 2 2.5 5 5 7.5
MES-30	30/5 50/5 60/5 75/5 100/5 150/5 200/5	- - - - 1.5 2.5 5	1 1 1.5 1.5 2.5 5 7.5
MES-40	100/5 150/5 200/5 250/5 300/5 400/5 500/5	1.5 2.5 5 5 10 10 10	2.5 5 5 5 15 15 15
MES-60	600/5 800/5 1000/5 1200/5	15 15 15 15	20 20 20 20
MES-100	1000/5 1200/5 1500/5 1600/5 2000/5 2500/5 3000/5	15 15 15 15 15 15 15	30 30 30 30 30 30 30
