Product Details
Features

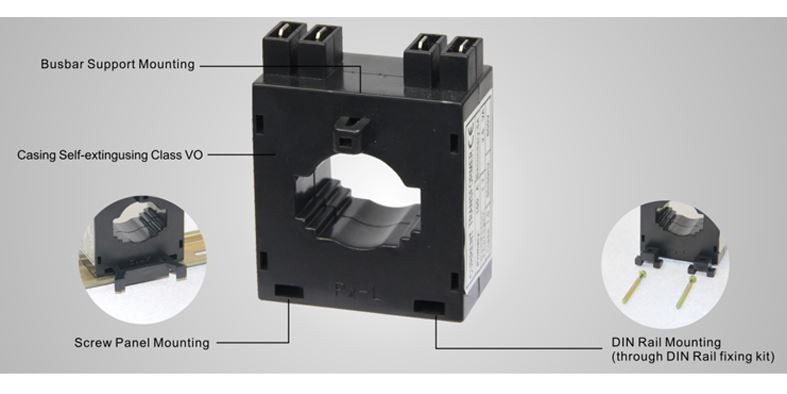

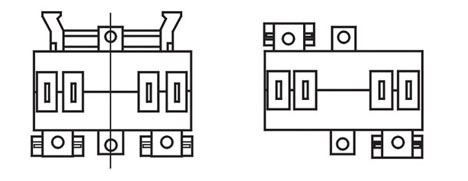

Two built in fixing methods:Din Rail/Busbar
Low cost
Primary current from 5A to 500A
Quick connection ternimals
Technical data & Specification of DX Current Transformers:
Model | Primary/ secondary | Busbar Hole Dimension | Rated Burden | Class | Rated Voltage |
DX-20 | 50/5A-150/5A | f=20mm | 1.5-2.5 | 1.0 | 660V |
DX-30 | 100/5A-500/5A | 30×10mm | 1.5-2.5 | 1.0 | 660V |
DX-40 | 150/5A-1000/5A | 40×10mm | 3-10 | 1.0 | 660V |
DX-20L | 50/5A-150/5A | f=20mm | 1.5-2.5 | 1.0 | 660V |
DX-30L | 100/5A-500/5A | 30×10mm | 1.5-2.5 | 1.0 | 660V |
Dimension of case (mm):
Model | A | B | C | D | E |
DX-20 | 53 | 28 | 57 | 66 | 54 |
DX-30 | 53 | 28 | 57 | 66 | 54 |
DX-40 | 71 | 45 | 73 | 81 | 65 |
DX-20L | 53 | 28 | 57 | 66 | 54 |
DX-30L | 53 | 28 | 57 | 66 | 54 |

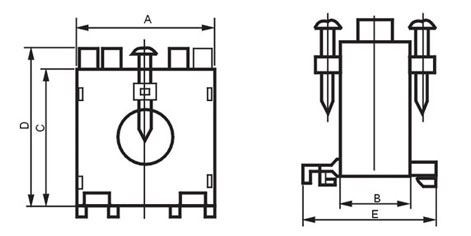

Outline Drawing of DX Current Transformers:
