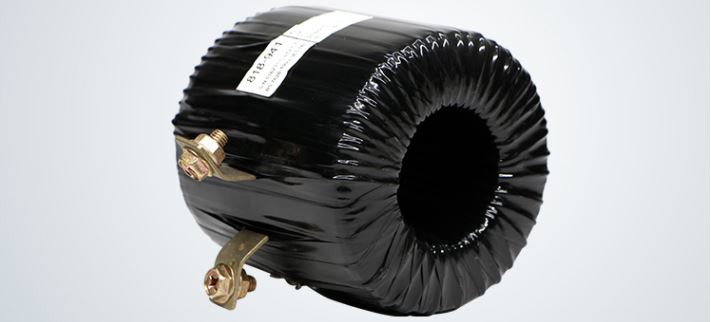

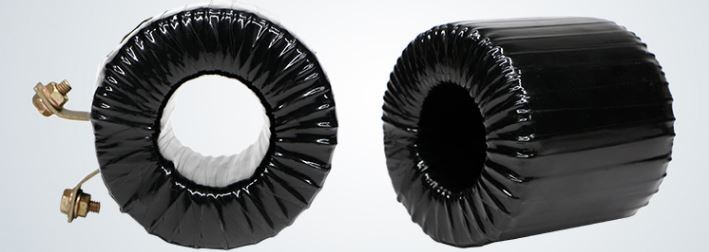

High Current Transformer

Product Details

Protective current transformers are required to operate over a range of current many times the circuit rating and are frequently subjected to conditions greatly exceeding those which it would be subjected to as a measuring current transformer.

When a current transformer is used to energize a protective relay, it must maintain its characteristic ratio up to some multiple of its rated current. This multiple, may be 5, 10, 20 or some even higher value is know as the "Accuracy Limit Factor"(ALF). Therefore, the selection of Protective Current Transformers in relation to accuracy class and ALF require a close examination of relay characteristic and circuit conditions which includes the relay burden and the pilot wire lead burden.

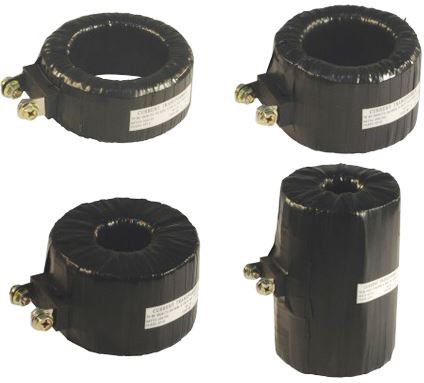

Dimensions of High Current Transformer (mm):

CI: 10P5 15VA

 CI: 50P5 15VA

Spec.	100   /5A	150   /5A	200   /5A	250   /5A	300   /5A	400   /5A	500   /5A	600   /5A	800   /5A	1000   /5A	1200   /5A	1600   /5A	2000   /5A	2500   /5A	3000   /5A	3500   /5A	4000   /5A	5000   /5A
OD	100	100	100	96	96	96	102	110	120	120	123	123	123	178	178	182	182	184
ID	34	34	34	45	45	45	62	68	62	85	82	82	125	125	125	120	120	118
HT	180	130	110	110	110	90	110	88	22	68	60	68	40	40	40	35	35	PR Current Transformers Recommend products LMZ (J) W 1-0.5 type current sensor BK series machine tools control transformers DX Current Transformers DP Current Transformers In addition to PR Current Transformers Customers Also Bought AM3 Series Moulded Case Circuit Breaker CDW6i Air Circuit Breaker DZ50-63 Series Miniature Circuit Breaker CJX1 series AC Contactors PR Current Transformers Prev :LMZ (J) W 1-0.5 type current sensor PR Current Transformers Next :MR Current Transformers
