Hella Solid State Relay
Product Details
AC-AC Three Phase Solid State Relay
Application : ● High rellability by S.M.T & TQC.(Surface Mounting Technology) ● High Isolation over than 50MQ/500VDC ● High dielectric over than 2.5KV ● Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible. ● Low EMI/EFI& surge by Zeero cross Trigger Method. ● High surge current duration,over 10 Times of rated current/one cycle. ● High surge voltage duration by snubber circuit. |  |

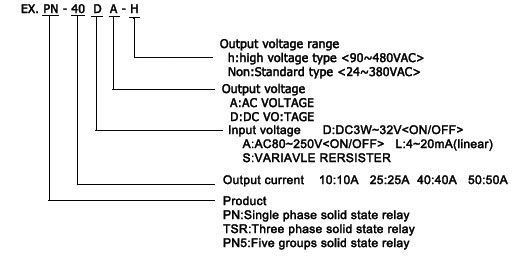

Guiding of Model :
Control Method :

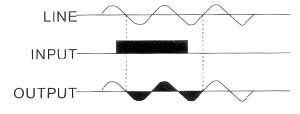

Zero Cross Trigger Method Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring. Specially suited to control resistive,capacitive and Non-saturated inductive loads |  |

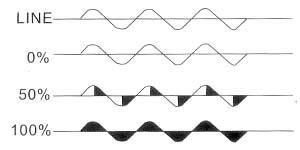

| Variable resistance control method Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC |  |
Dimension and connection diagram :
