1.Application
JR28N series thermal relay is suitable for using in the circuits rated voltage up to 660V, rated current 93A AC 50/60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in CJX2N series AC contactor. The product conforms to IEC60947-4-1 stardand.

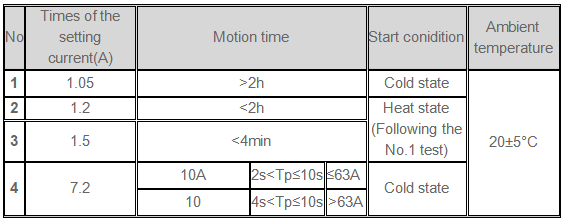

2.Motion Characteristic: Three-phase Balance Motion Time

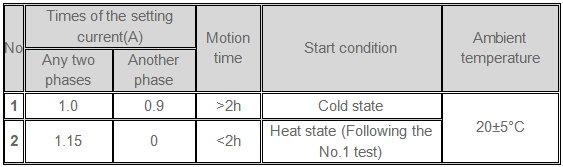

3.Phase-losing Motion Characteristic

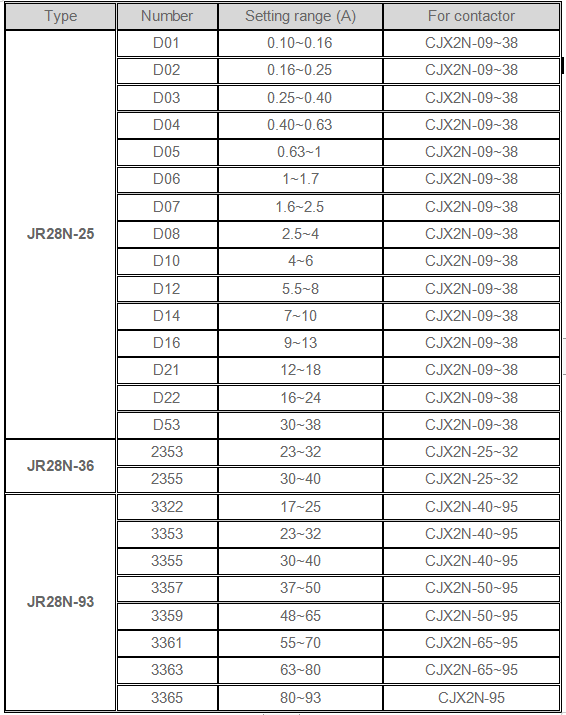

4.Specification
