Solid State Relay Dc Load

Product Details

AD Justable Solid State Relay

Application :  ● High rellability by S.M.T & TQC.(Surface Mounting Technology)  ●  High Isolation over than 50MQ/500VDC  ● High dielectric over than 2.5KV  ● Low enable current less than 7.5mA/12VDC CMOSIC or TTL Compatible.  ● Low EMI/EFI& surge by Zeero cross Trigger Method.  ● High surge current duration,over 10 Times of rated current/one cycle.  ● High surge voltage duration by snubber circuit.

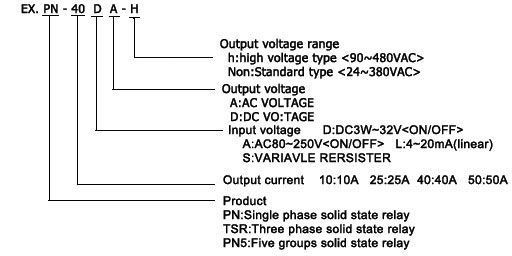

Guiding of Model :

Control Method :

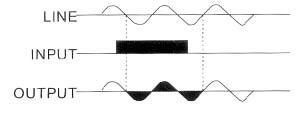

Zero Cross Trigger Method Output TURN ON or TURN OFF only on zero cross point of sine wave,may avoid surge or EMI/RFI occurring. Specially suited to control resistive,capacitive and Non-saturated inductive loads
Variable resistance control method  Power output is controlled by the trigger angle of triac with variable resister 250KQ/110VAC,500KQ/220VAC

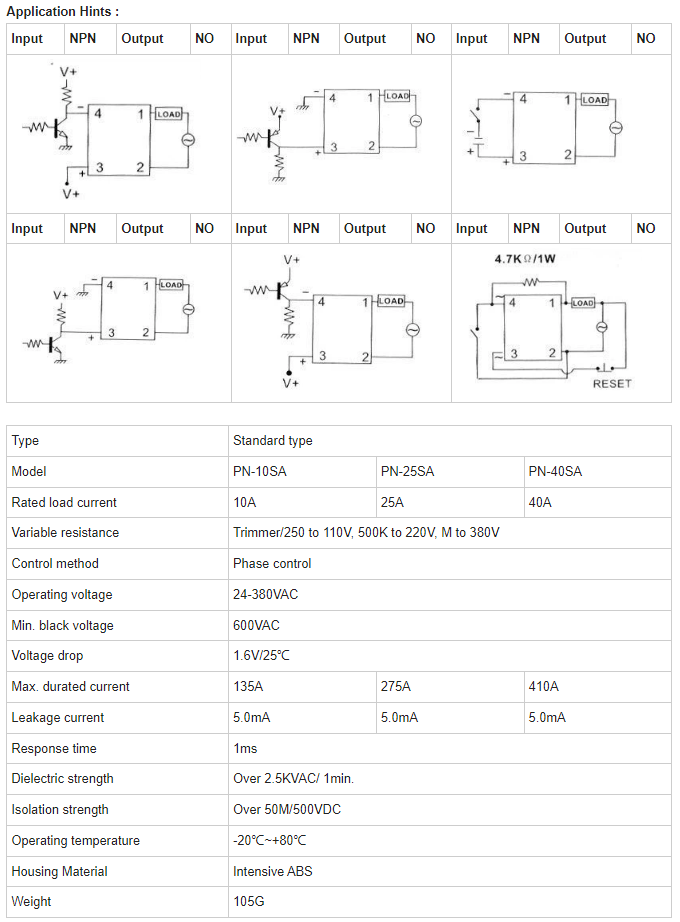

Dimension and connection diagram :
