Application
CJX5 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 85A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.

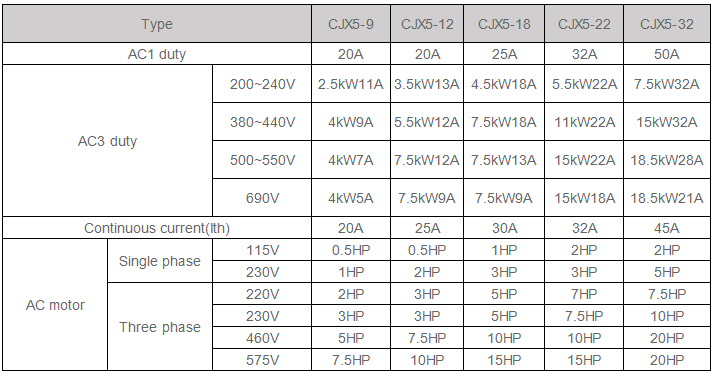

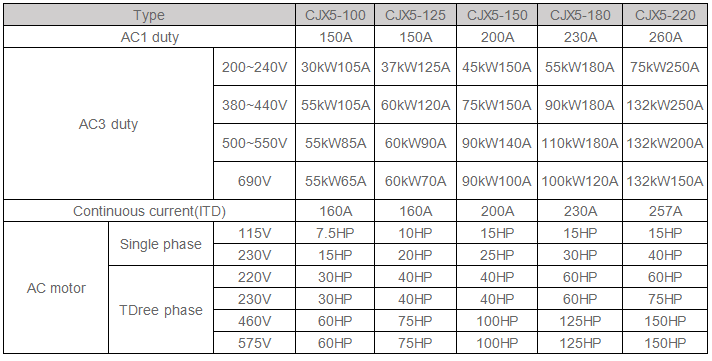

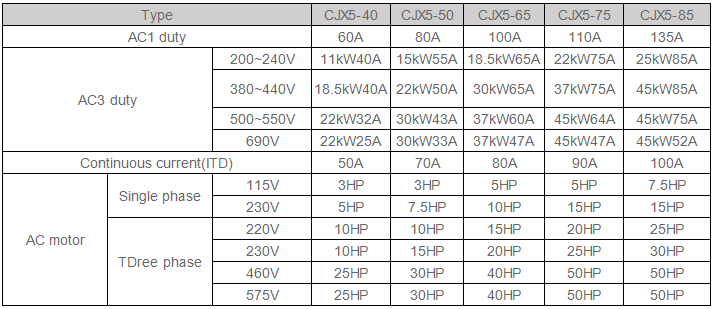

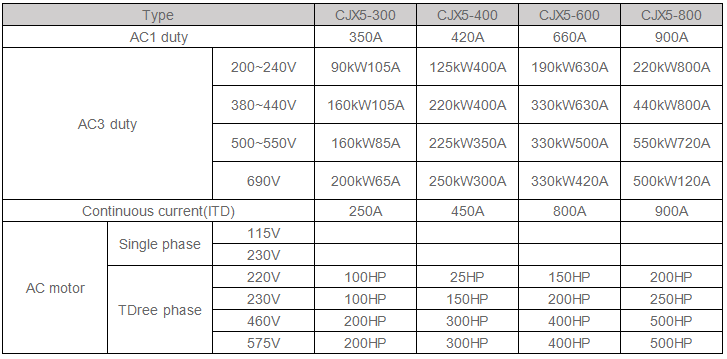

Specification

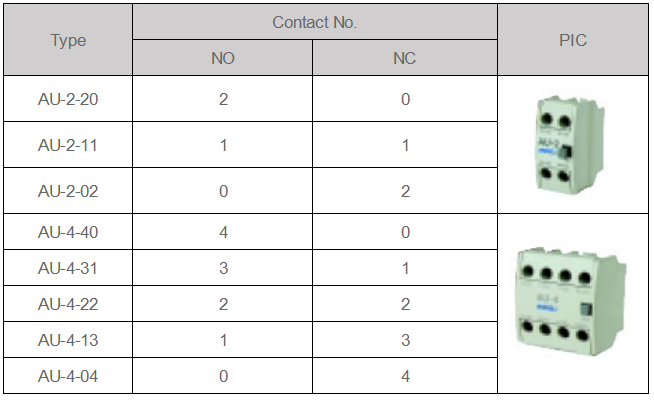

Auxiliary For AC Contactor CJX5

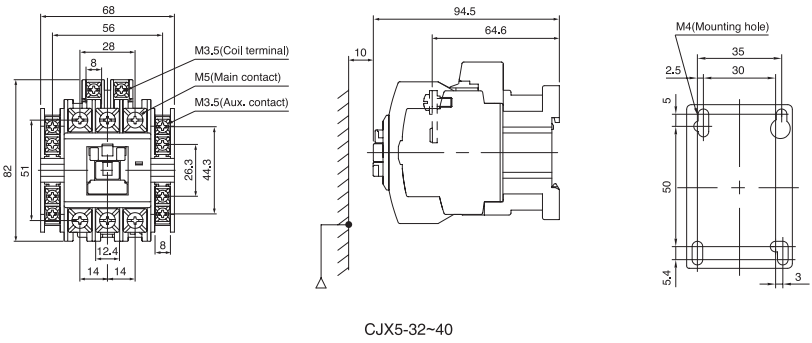

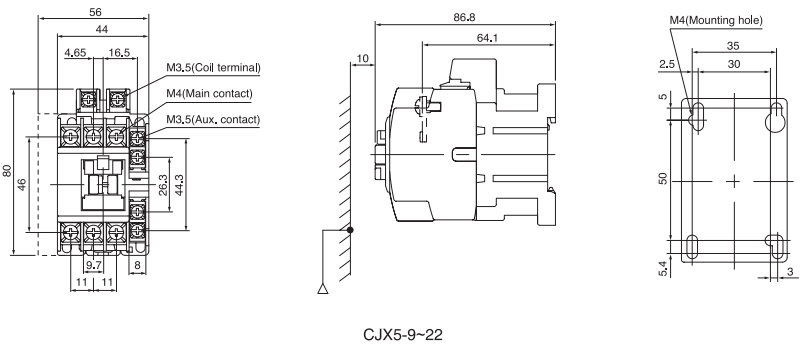

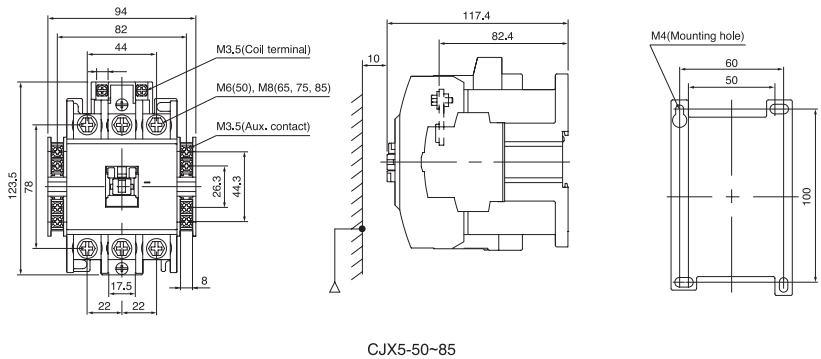

Outline and Mounting Dimension
