DZ55-63 Series Miniature Circuit Breaker

Application

DZ55-63 is applicable to a line of AC 50Hz/60Hz, rated voltage 400V and DC rated voltage 250V for protecting overload and short circuit, and rated current up to 63A.It can also be used for overload and short circuit protection. It can also be used for infrequent line conversion under the normal condition. The breaker is applicable to industrial enterprise, commercially district, high-rise building and dwelling house. It conforms with the standards of IEC60898.

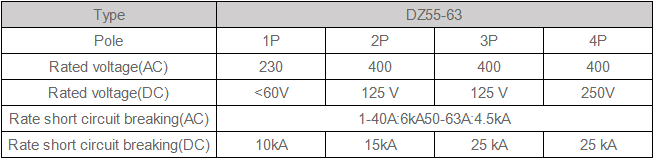

Main Technical Parameter

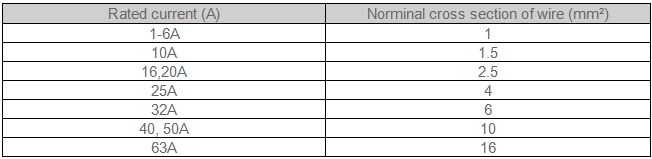

Applicable Conducting Wire

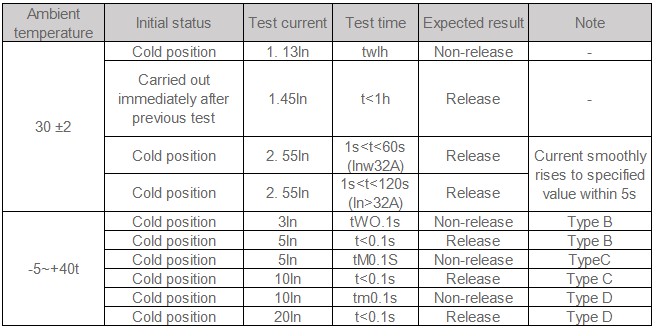

The Over-current Protection Property

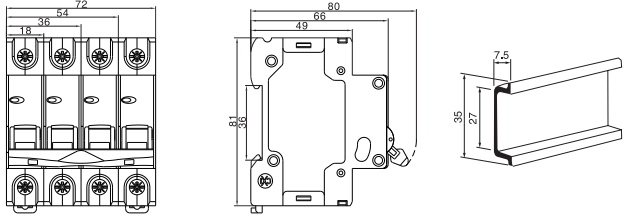

Dimension
