Application
DZ48N-63 miniature Circuit Breaker is applicable to a line of AC 50Hz/60Hz, 230V in singlepole, 400V in double, three, four poles for protecting overload and short circuit, and rated current up to 63A. It can also be used for infrequent line conversion under the normal condition.The breaker is applicable to lighting distribution system in industrial enterprise, commercially district,high-rise building and dwelling house. It conforms with the standards of IEC60898.

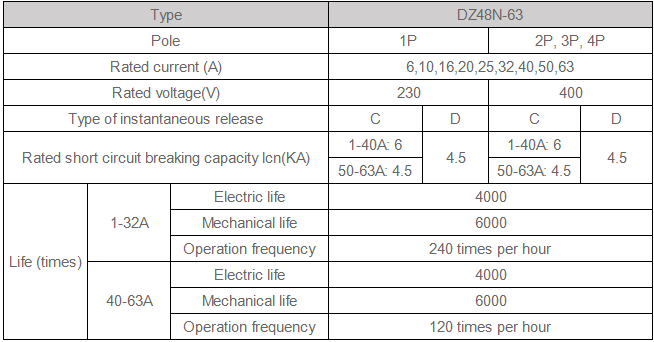

Main Technical Parameter

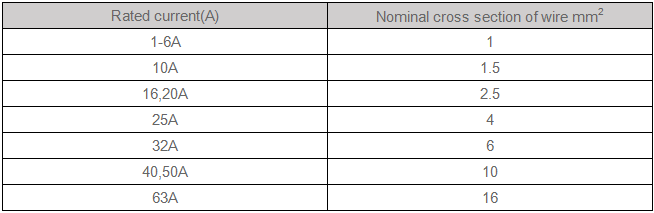

Applicable Conducting Wire

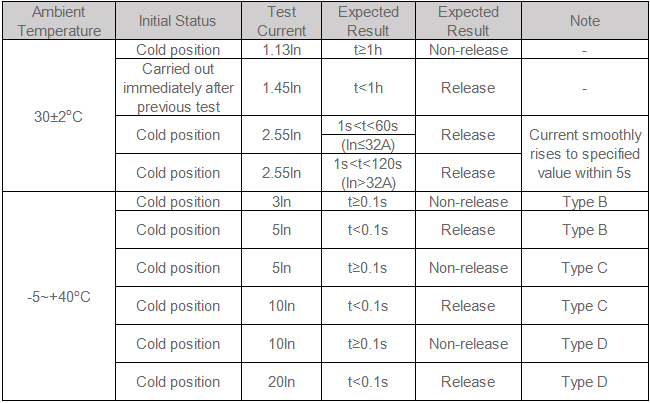

The Over-current Protection Property
Dimension
