1. Application

AM1 series moulded case Circuit Breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.

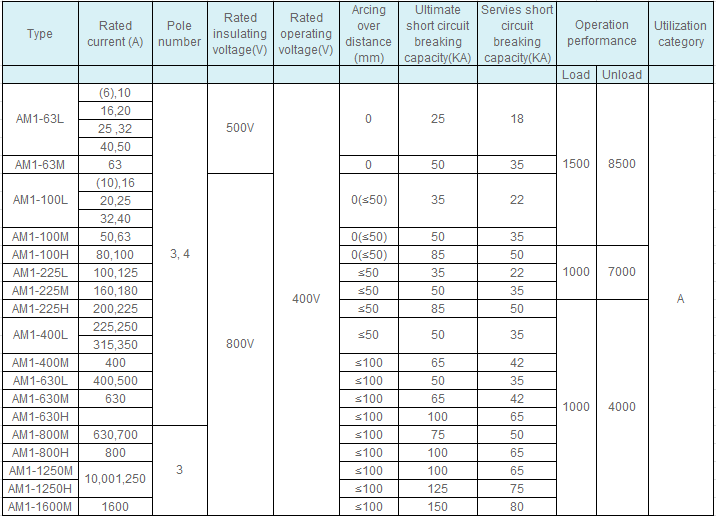

2. Main Technical Specification (table 1)

Note: 6A without thermal protection
The N-pole of four-poles breaker is sited at the right side of the product has four types:
Type A: Without current trip-lease on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release which closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.

3. Protection Characteristic

The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2 (distribution circuit breaker) and table 3 (motor protection circuit breaker).

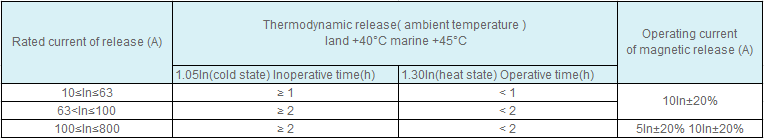

table 2

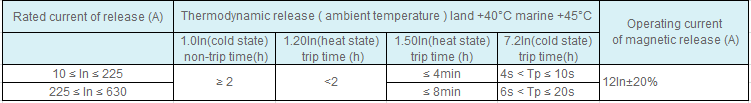

table 3

4. Accessories of Circuit breaker

Motor-driven operation device

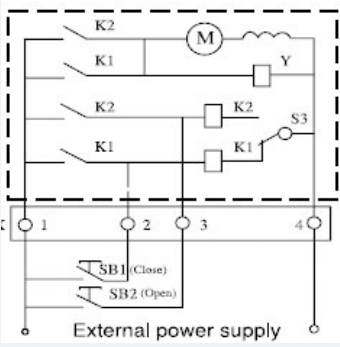

1) Wiring diagram of type CDM electromagnetic operation device(fitting AM1-63,100,225) see the following drawing (wiring diagram of the external accessories of the breaker in the dotted frame)

Code description: SB₁ SB₂ stand for push button.(provided by users themselves) Number "1" "2" "3" stand for number of wiring terminals.

Voltage rating: AC50Hz 230V 400V DC 220V

2) Wiring diagram of type CD motor-driven operation device (fitting AM1-400 630 800) seebelows (wiring diagram of the external accessories of the breaker in the dotted frame)

Code description: SB₁ SB₂ stand for push button. (provided by users themselves) "X" stands for line connection terminals
Voltage rating: AC50Hz 230V 400V DC 220V

 Rotary handle operation device

The mechanism is used in moulded case circuit breaker to operate the draw-out panel. Power distribution panel and supply box outside the panel by turning the handle, and to ensure the door of panel would not be openned when the breaker being on. The hand-drive mechanism can be equiped with two types of operation, one is "A" model square handle , the other is "B" model round handle.
