Noiseless silent push button

TH(Through Hole) vertical

Different color LED lighting option

Smooth or tactile clear feedback feeling

Available with bushing

General Specifications

Circuit/Contacts: SPST (push ON)

Switching rating: 12V DC @ 50mA

Terminal: Through hole(TH)

Total travel: 1.0mm ± 0.3mm

Operating force: 60gf ± 20gf

Mechanical life: 1,000,000 cycles min.

Front protection: IP6X

Illumination: illumination

Materials

Cap/Lens: PA(Polyamide) / Polycarbonate(PC)

Stem/Reflector: Polyoxymethylen (POM)

Base/Housing: Acrylonitrile Butadine Styrene (ABS) / PA(Polyamide)

Terminal: Brass with gold plating

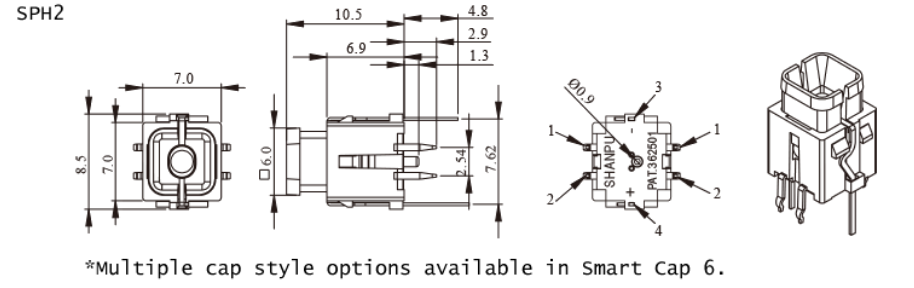

Diagram
