Principle & Characteristics
This series product is developed on the base of TND series high accuracy full-automatic AC voltage stabilizer. It forms the control system with linear integrated circuit, and drives the contact voltage regulator to start regulating by controlling the serving motor. It is provided with delay, overvoltage, under-voltage, over-current and other protection functions to ensure the safety of the power supply. It has the advantages of high efficiency, no waveform distortion, stable output voltage, small electric consumption and working continuously.
Scope of Application
It is available in the power supply of the electric equipment and facilities in housing, factory, school, shop, office, precision instrument for science research.
Main Advantages
a. Excellent quality of output voltage, no transient electricity lost phenomenon when the electricity supply is not interrupted, which ensures the computer and the electric appliances with memory function can work safely and reliably.
b. Wide in put voltage range, high load adaptability, the 220V and 110V can be regulated output at same time, which is convenient for these families with 110V input electric appliance.
c. With the over-current protection when input, and the under-voltage, over-voltage protection when output, indicators.
d. With two for input and output voltage

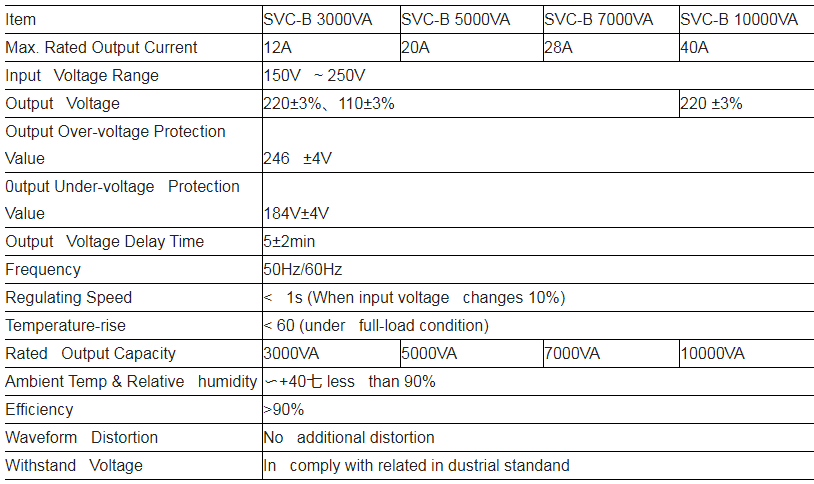

Main Technical Parameter

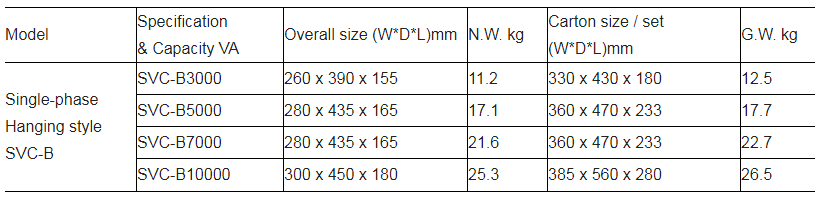

Overall Size & Weight
