Overview

This series of vacuum contactor is suitable for power network of AC 50HZ, the main circuit rated voltage 1140V, rated current up to 1000A, for making, breaking, frequently starting and controlling AC motor, also for forming magnetic starter with a variety of protection devices (JDB electronic integrated protector, JR9 type over current protection device, resistance capacitance absorber), especially for forming anti-explosion magnetic starter.

The contactor conforms to GB/T 14048.4, IEC 60947-4-1 and JB/T 7122 standard; the main performance indicators have reached the international level.

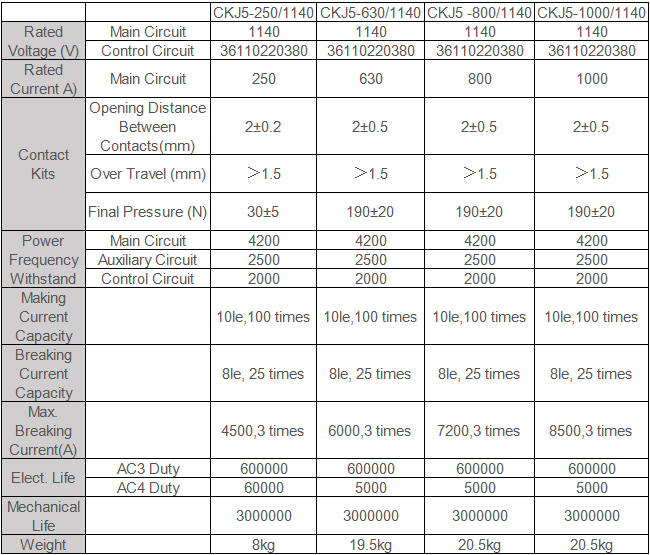

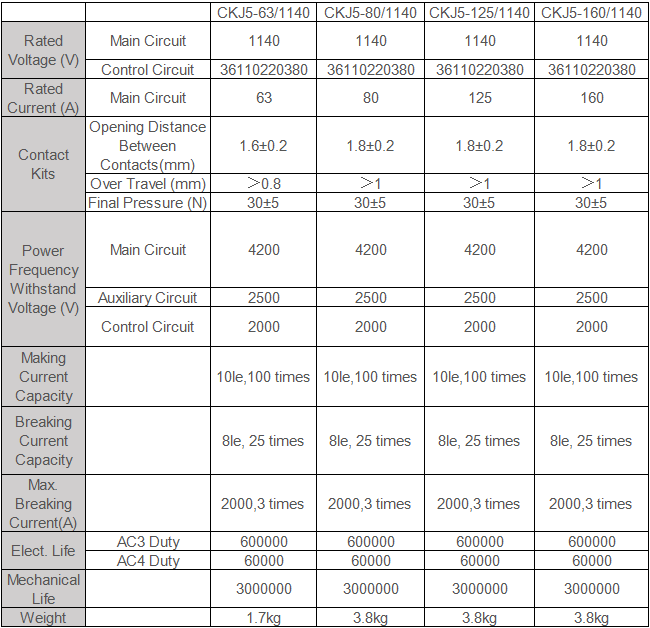

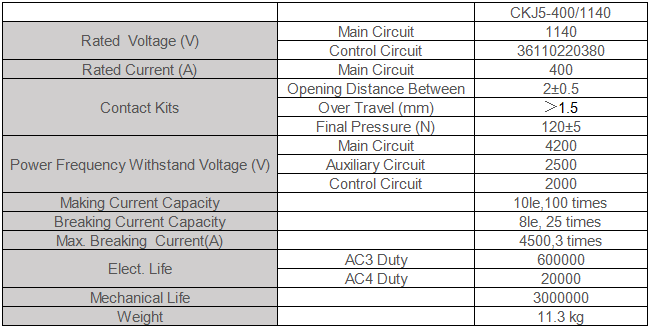

Parameters

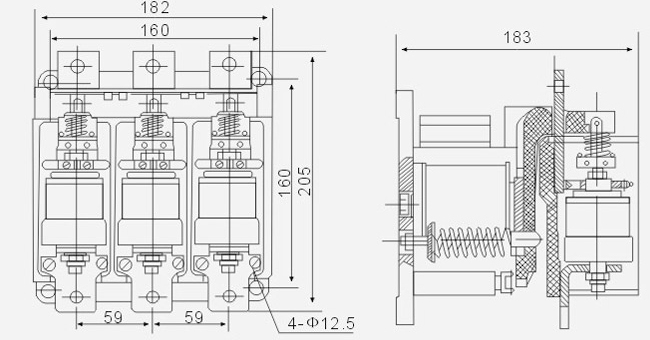

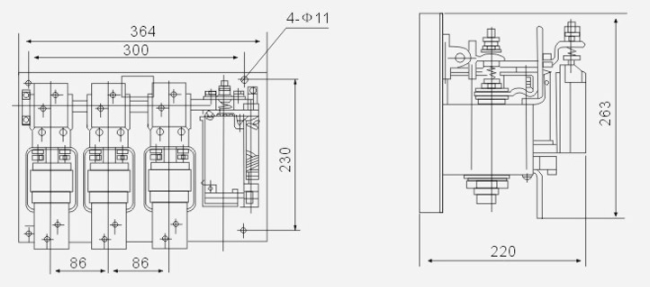

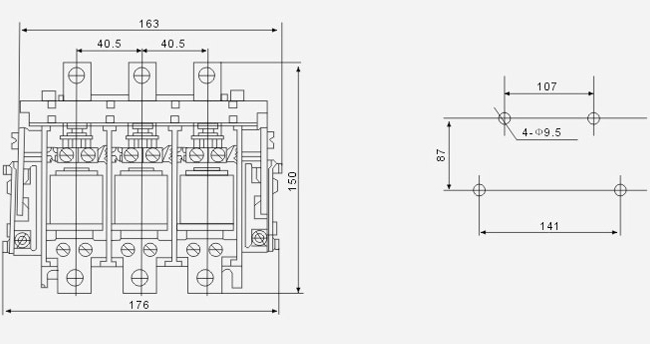

Outline

CKJ5-125/1140

CKJ5-250/1140

CKJ5-400/1140

CKJ5-630/1140
