Non Insulated Ring Terminals
Ring Naked Terminal (TO)
Product Details
Product Details

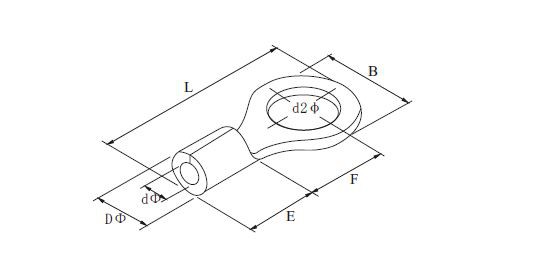

Cross section: 0.5~1.5mm² (22~16) current： Imax=19A | RNB 1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
RNBS 1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | ||||
RNBM 1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | ||||
RNBL 1.25-3.5 | #6 | 3.7 | 8.0 | 15.8 | 7.0 | ||||
RNBS 1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | ||||
RNBL 1.25-4 | #8 | 4.3 | 8.0 | 15.8 | 7.0 | ||||
RNB 1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | ||||
RNB 1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | ||||
RNB 1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | ||||
RNB 1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.6 | ||||
Cross section: 2 1.5~2.5mm² (16~14) current： Imax=27A | RNB 2-3 | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
RNBS 2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.3 | ||||
RNBM 2-3.5 | #6 | 3.7 | 6.6 | 16.0 | 7.0 | ||||
RNBL 2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.0 | ||||
RNBS 2-4 | #8 | 4.3 | 6.6 | 16.0 | 7.75 | ||||
RNBL 2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.25 | ||||
RNBS 2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | ||||
RNBL 2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | ||||
RNB 2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | ||||
RNB 2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | ||||
RNB 2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
RNB 2-12 | 1/2 | 13.0 | 19.2 | 3.1 | 16.5 | ||||
Cross section: 2 2.5~4mm² (14~12) current： Imax=37A | RNB 3.5-4 | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
RNBS 3.5-5 | #10 | 5.3 | 8.0 | 18.0 | 7.7 | ||||
RNBL 3.5-5 | #10 | 5.3 | 12.0 | 21.4 | 7.7 | ||||
RNB 3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 7.7 | ||||
Cross section: 2 4~6mm² (12~10) current： Imax=48A | RNB 5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
RNBS 5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 | ||||
RNBL 5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 | ||||
RNB 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | ||||
RNB 5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | ||||
RNB 5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | ||||
RNB 5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 | ||||
RNB 5.5-12 | 1/2 | 19.2 | 19.2 | 32.4 | 16.0 | ||||
Cross section: 2 6~10mm² (8) current： Imax=62A | RNB 8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
RNBS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | ||||
RNBM 8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | ||||
RNBL 8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | ||||
RNBS 8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | ||||
RNBL 8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | ||||
RNB 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | ||||
RNB 8-10 | 3/8 | 10.5 | 15.0 | 29.38 | 13.8 | ||||
RNB 8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15.0 | ||||
Cross section: 2 10~16mm² (6) current： Imax=88A | RNB 14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 |
